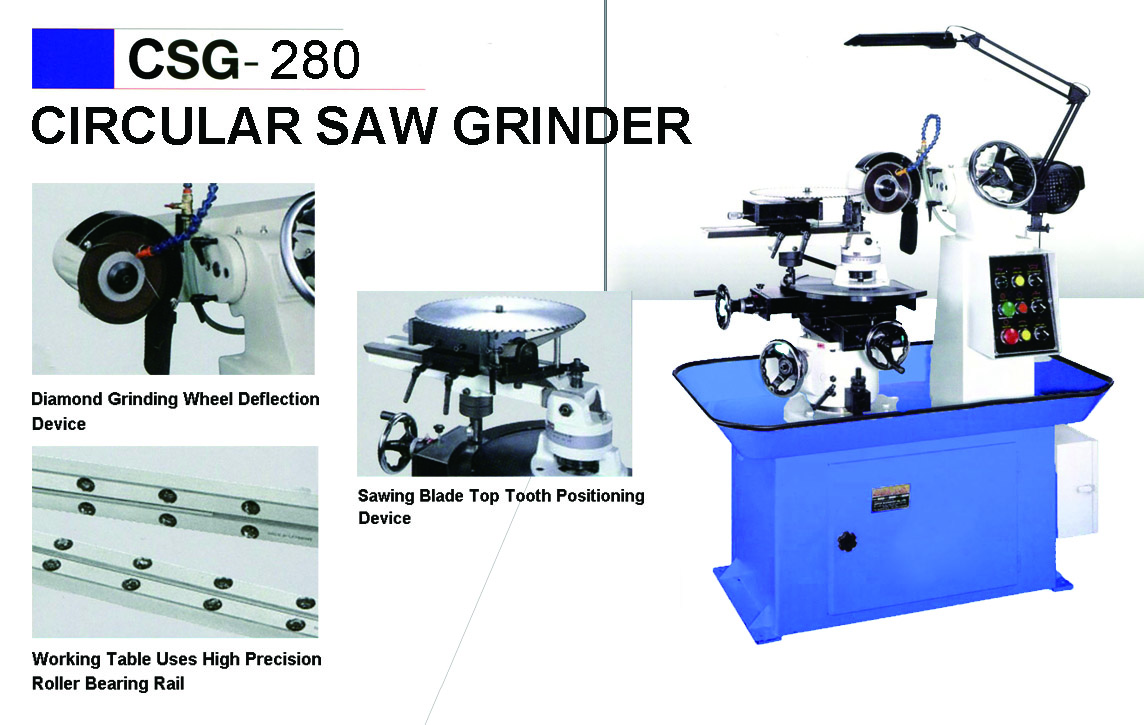

| CARBIDE SAW GRINDER | |
| The blade of ths grinder is attached by electromagnetic disc, convenient to draw knife & high precision (magnetic disc is in parallel with the rail +/-0.02mm). With the cooling device design, saw blade will not heat up. | |
| Grinding Capacity | Dia. 110 - 660 mm |
| Grinding Motor | 1/2 hp |
| Eccentric Motor | 40W |
| Cooling Motor | 1/8 hp |
| Grinding Speed | 4000 rpm (50hz)/ 5000 rpm (60hz) |
| AUTOMATIC CARBIDE SAW GRINDER | |
This grinder adopts PLC control system for easy operation. Operator enters required data such as the number of tooth & manually adjusts tooth pitch, then the grinder will automatically run until it reaches the inserted data. This grinder accepts trapezium shaped tooth blade as well. |
|
| Grinding Capacity | Dia. 120 - 800 mm |
| Saw Bore Dia. | 10 - 110 mm |
| Grinding Motor | 1 hp |
| Cooling Motor | 1/6 hp |
| Blade Thickness | 8 mm |
| Tooth Pitch | 6 - 75 mm |
| Grinding Speed | Up to 20 teeth/min |
| Power | 2.25 KW |
| Hydraulic Pressure | 40 bar |
| Water Pump Flow | 50 L/min |

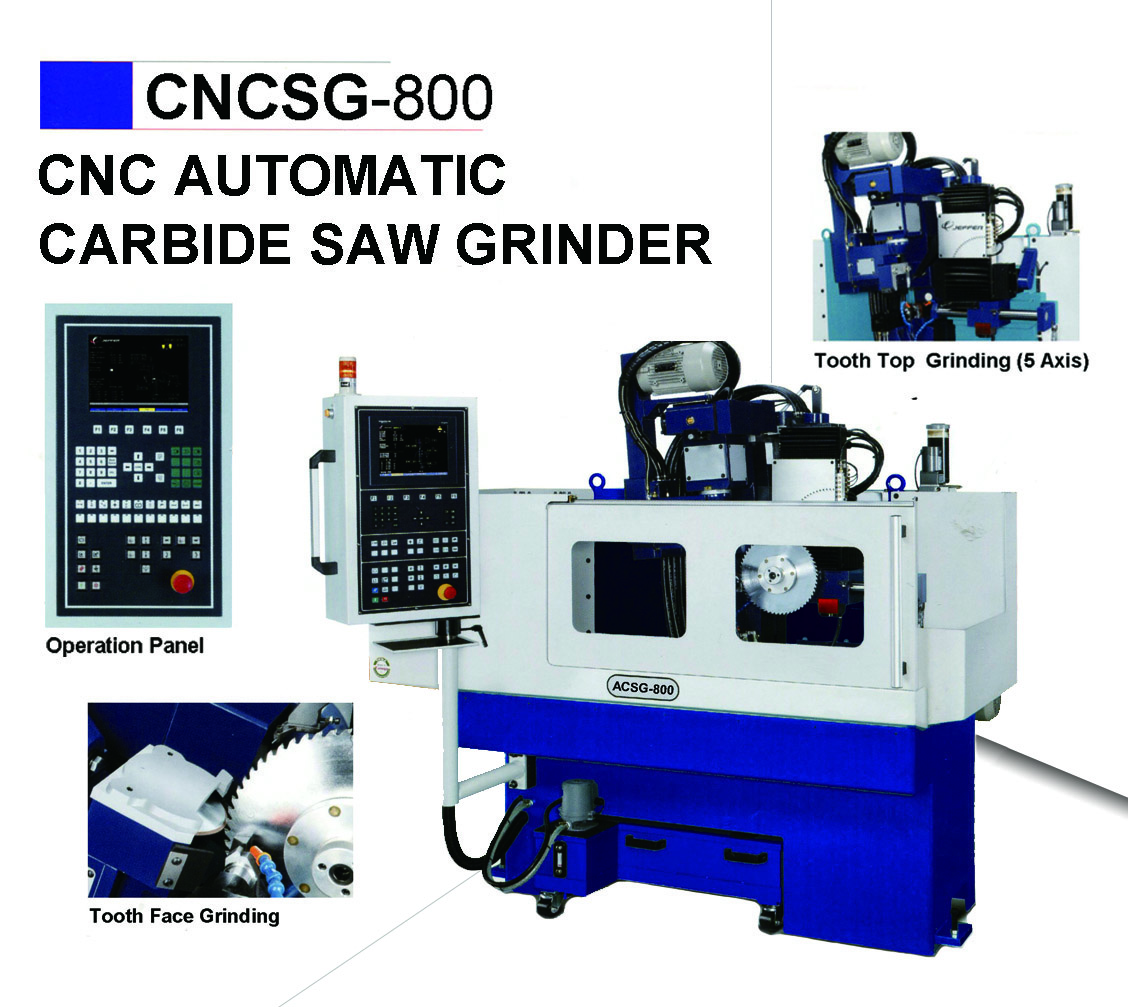

| CNC MULTI AXIS AUTOMATIC CARBIDE SAW GRINDER | |
This CNC auto multi axis grinder is servo motor controlled, suitable to grind multi types of blade with easy operation, application includes flat tooth, hook shaped tooth,chamfered tooth, etc. |
|
| Grinding Capacity | Dia. 120 - 800 mm |
| Saw Bore Dia. | 10 - 85 mm |
| Grinding Motor | 3 hp |
| Cooling Motor | 1/6 hp |
| Clearance & Hook Angle Motor | 1/4 hp |
| Grinding Wheel Feeding Motor | 0.4 KW (for servo motor drive use) |
| Tooth Pushing Motor | 0.8 KW (for servo motor drive use) |
| Clearance & Hook Angle | 5° - 45°/ 0° - 40° |
| Bevel Grinding | Top Angle 5° - 45°/ Face Angle 0° - 30° |
| Grinding Speed | 3400 rpm (50hz)/ 4000 rpm (60hz) |
| Grinding Wheel Thickn. | 20 mm |
| Blade Thickness | 0.5 - 5 mm |

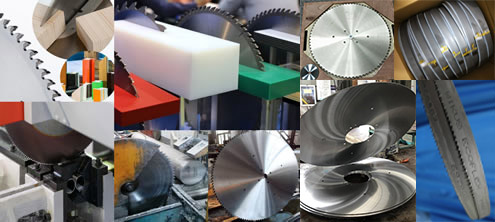

| STEEL & METAL CUTTING BLADES |
| Aluminum Cutting Saw Blade This saw blade adopts trapezoidal & flat tooth to cut stainless steel & al alloy. |
| Tungsten Carbide Saw Blade This saw blade is high quality alloy steel body and carbide tip, suitable for cutting carbon steel, alloy steel, cast iron, cu & al, etc. Max. cutting dia. 450mm, for various types of cutting machine use in room temperature. |
| Hot/ Cold Rolled Steel Saw Blade Hot Saw Blade ranges dia. 530-2500mm, with ample coolant flow under high pressure for clearing scrap from surface, suitable for cutting HR above 750°C. Wide applications in hot roll mills for tube, rail, etc. Body material: 45Mn2V, 50Mn2V, 65Mn, 51Mn7, 46Mn; tooth is high hardness (HRC50-55) & anti-abrasive. Cold Saw Blade is widely used for cutting small sections e.g. welded tube, channel & angle steel in room temperature. It is high hardness, abrasive-assistant. Smooth cutting section & high speed production. |
| Cold Metal Cut Saw Blade Suitable for cutting carbon steel carbon content under 0.45% & other alloy steel. The blade features high resistant surface, and requires lower temperature, noise & powerforce. Which allows the blade to be more durable & simplifies users' subsequent manufacturing processes to reduce overall cost. |
| Bimetal Band Saw Blade Ranges from small to large size for cutting solids and profiles in single, layer and bundle. The material is cast iron, stainless & acid-resistant, for cutting non-furrous metal and steel metal HRC 40. Serves from basic workshop use to universal & serial cutting. |
| HSS Metal Saw Blade High speed steel saw blade O.D. 45-150, 250-450. |
